| Nguồn gốc: | Tỉnh Sơn Đông, Trung Quốc |
|---|---|
| Hàng hiệu: | SH |
| Chứng nhận: | ISO9001, CE |
| Số mô hình: | YM500, YM430, YM400, YM330, YM150, v.v. |
| Tài liệu: | multi blades rip saw.pdf |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | $15,800 - $180,000 / Sets |
| chi tiết đóng gói: | Nạp container |
| Thời gian giao hàng: | trong vòng 20 đến 30 ngày |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây |
| Khả năng cung cấp: | 1000 bộ / năm |
| Tên: | Dây chuyền sản xuất cưa nhiều lưỡi hiệu suất cao | Khả năng cắt: | Công suất 120m³/8h |
|---|---|---|---|
| Từ khóa: | Máy cưa gỗ nhiều lưỡi, Dây chuyền máy cưa công nghiệp, Máy cưa nhiều lưỡi | Xử lý nhật ký tối đa. đường kính: | 500mm |
| Hoạt động: | Tự động | Đường kính lưỡi cưa: | 255 ~ 650mm |
| Tốc độ thức ăn: | 10 đến 50 m/phút | gỗ ứng dụng: | khúc gỗ cứng và gỗ mềm |
| Dịch vụ hậu mãi: | Hỗ trợ kỹ thuật video | Bảo đảm: | 1 năm |

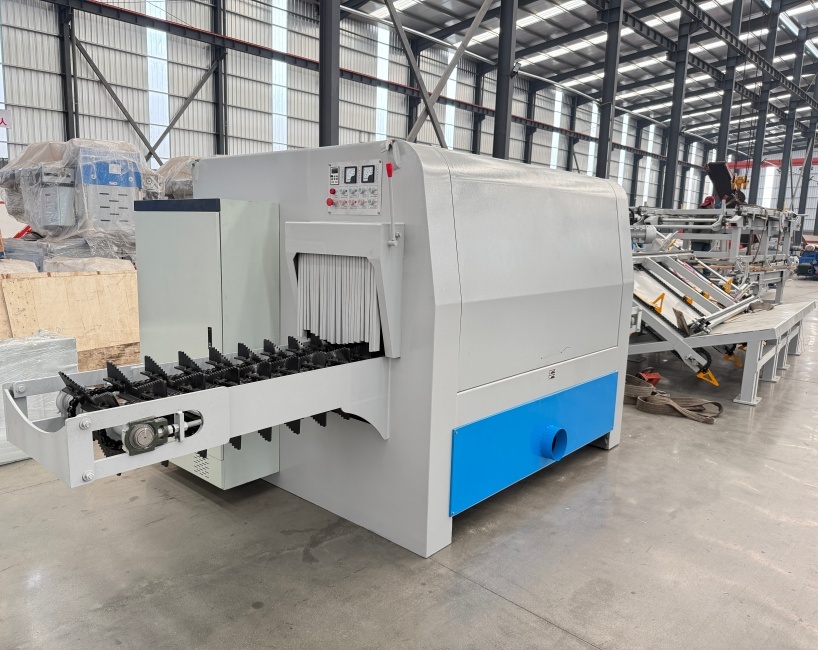

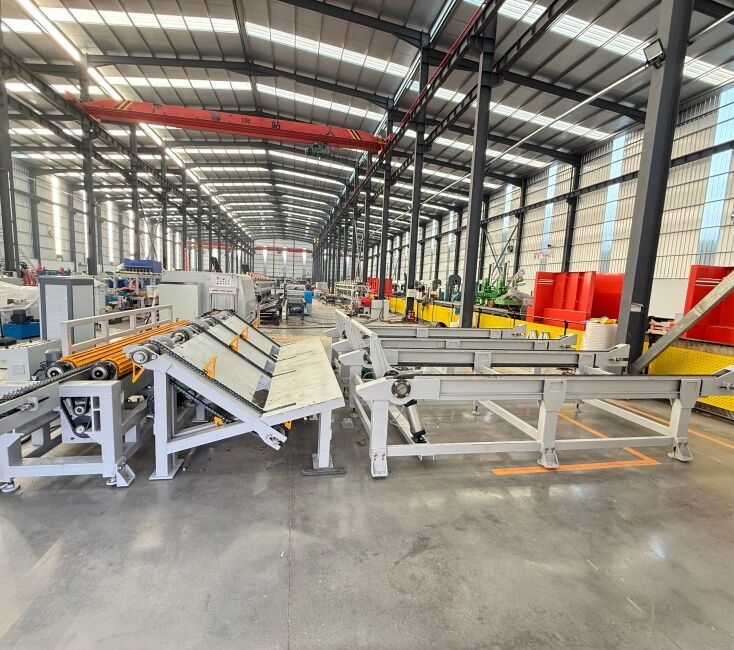

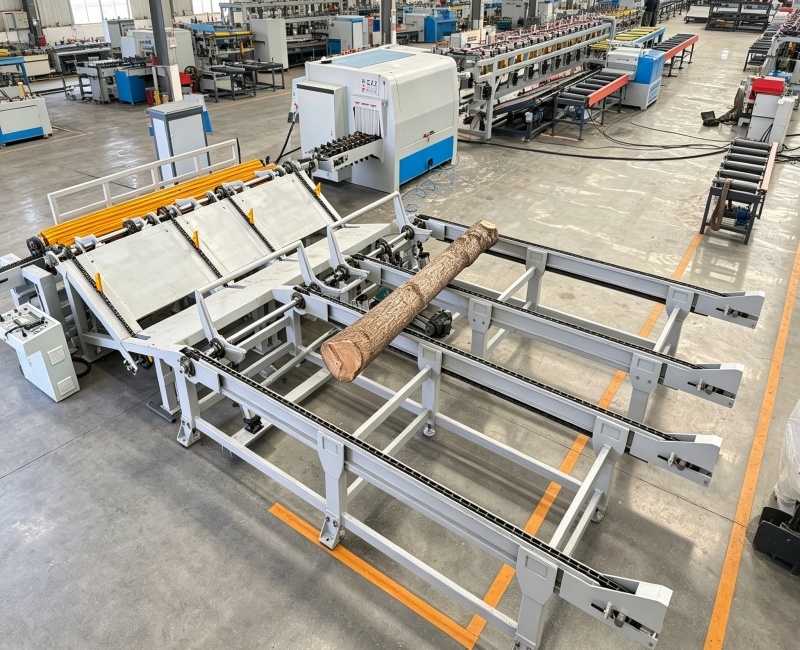

Maximize your sawmill’s ROI with our heavy-duty log multi-blade saw production line. Engineered specifically for large-scale timber processing, this system handles logs with diameters ranging from 250mm to 500mm and lengths up to 6000mm.
With a robust industrial design, this line delivers a massive production capacity of 80–120 m³ per 8-hour shift, making it the ideal solution for high-volume lumber manufacturers seeking to reduce labor costs and increase precision.
| Feature | Capability |
| Log Diameter Range | 250mm – 500mm |
| Maximum Log Length | 6000mm |
| Daily Output (8 Hours) | 80m³ – 120m³ |
| Blade Configuration | Multi-saw blade system for precision cutting |
| Application | Softwood & Hardwood processing, Pallet production, Construction timber |
| Model | SHYM500 |
| Sawing Log Diameter | 250-500mm |
| Min Sawing Log Length | 1000mm |
| Spindle speed | 2800r/min |
| Main Motor Power | 75kw,75kw |
| Feeding Motor | 3kw |
| Saw Blade Quantity | 2-10pcs |
| Saw Blade Diameter | 650mm |
| Discharge Electric-powered Side Pressure Roller | 2pcs |
| Model | SH160-400 |
| Max Cutting Plank Width | 400mm |
| Max Cutting Plank Thickness | 70-160mm |
| Saw Blade Diameter | 280mm |
| Saw Spindle Diameter | 70mm |
| Circular Saw Blade Quantity | 1-10 Pieces |
| Motor Power | 37+45KW |
| Weight | 2690KG |
Woodworking Machinery for Large Logs
Automatic Log Sawing Production Line
Log Multi-Rip Saw Price
High Yield Wood Sawing System
Industrial Log Breakdown Line
Timber Primary Processing Equipment
Q1: What is the maximum log size this machine can handle?
A: It processes logs up to 500mm in diameter and 6000mm in length.
Q2: What is the maximum log diameter and length this production line can process?
A: This heavy-duty production line is specifically designed for large-scale timber. It efficiently processes logs with a diameter max. 500mm and a maximum length of up to 6000mm or as customer needs, making it ideal for construction-grade lumber and large pallet materials.
Q3: Can this multi-saw blade line handle both hardwood and softwood?
A: Yes. The system is equipped with high-torque motors and specialized alloy saw blades that can be adjusted for different wood densities. Whether you are processing softwood (pine, spruce) or dense hardwood, the machine ensures a smooth finish and high dimensional accuracy.
A: Due to its industrial capacity, the line typically requires a 380V/50Hz (or customized) three-phase power supply. Regarding space, since it handles 6000mm logs, we recommend a factory layout that allows for seamless in-feed and out-feed. Contact our technical team for a detailed floor plan layout.
