| Nguồn gốc: | Tỉnh Sơn Đông, Trung Quốc |
|---|---|
| Hàng hiệu: | SH |
| Chứng nhận: | ISO9001, CE |
| Số mô hình: | AEPN-1300, SHDL-1300, PQ1300-4, v.v. |
| Tài liệu: | wood pallet nailing machine...ne.pdf |
| Số lượng đặt hàng tối thiểu: | 1 BỘ Máy đóng đinh pallet gỗ |
| Giá bán: | US $4,800 - 21,500 / Set |
| chi tiết đóng gói: | bao bì khung sắt hoặc bao bì luo |
| Thời gian giao hàng: | Trong vòng 15 ngày |
| Điều khoản thanh toán: | T/T hoặc L/C khi nhìn thấy, Western Union |
| Khả năng cung cấp: | 1000 bộ / năm |
| Tên: | Máy đóng đinh pallet gỗ | Dung tích: | 50-80pallet / giờ |
|---|---|---|---|
| Chiều dài Pallet gỗ: | 700-1300mm | Chiều rộng pallet gỗ: | 800-1300mm |
| Chế độ làm việc: | Tự động cho ăn và xếp chồng lên nhau | Số lượng súng bắn đinh cuộn: | 3 chiếc hoặc 4 chiếc |
| Áp suất không khí: | 0,8Mpa | Dịch vụ sau bán hàng: | hỗ trợ kỹ thuật video, phát hiện thông minh từ xa miễn phí |
| Bảo đảm: | 1 năm | sơn máy: | Phun nhựa để tránh rỉ sét |

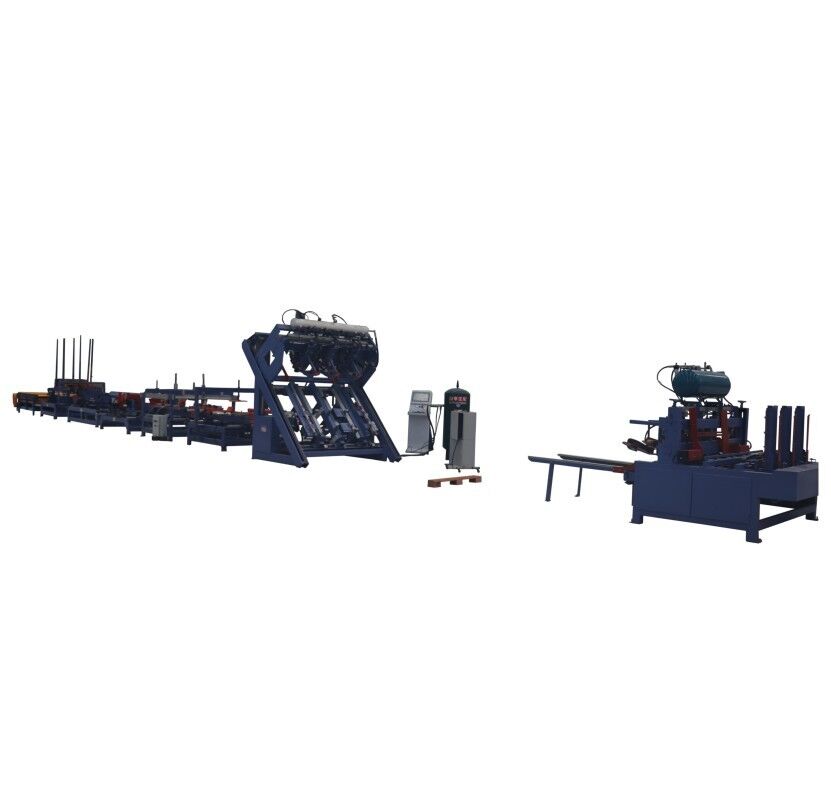

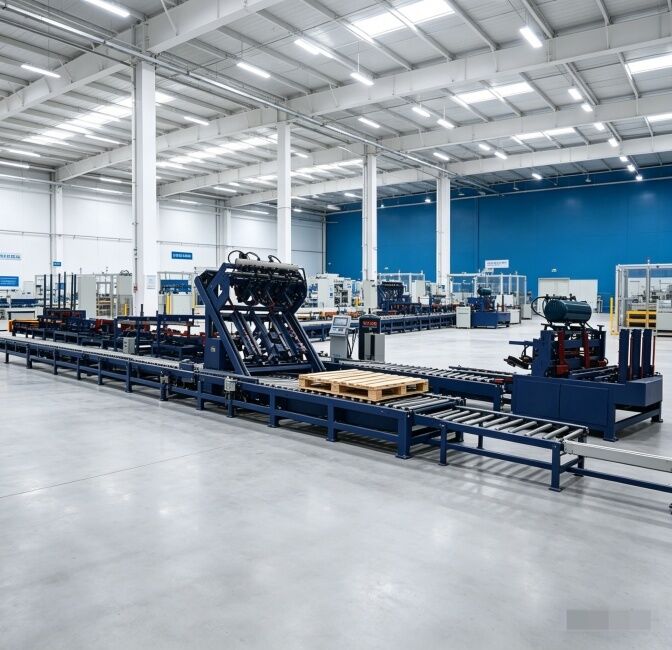

Maximize your facility's throughput with our Automatic EPAL Wood Pallet Production Line. Capable of producing 50-80 pallets per hour, this fully integrated system handles pallet sizes from 700mm to 1300mm. Features advanced block nailing, automated branding, and precision chamfering to meet strict European standards.
Our production line is an all-in-one solution designed for high-volume manufacturing of standard EPAL and custom wooden pallets.
Automatic Pallet Block Nailing Machine: High-precision placement and fastening of support blocks.
Automatic Pallet Nailing Machine: Industrial-grade nailing for top and bottom decks.
Pallet Rotary & Turning Machines: 180° and 90° flipping for dual-sided processing.
Pallet Branding Machine: Automatic heat stamping of EPAL/EUR logos and IPPC markings.
Pallet Corner Cutting & Chamfer Machine: Precision trimming for safety and easy handling.
Pallet Palletizer & Conveyor System: Automated stacking and transport to minimize manual labor.
Production Capacity: 50 - 80 pallets / hour.
Pallet Length: 700mm – 1300mm.
Pallet Width: 800mm – 1300mm.
Compliance: Designed for EPAL European Standard production.

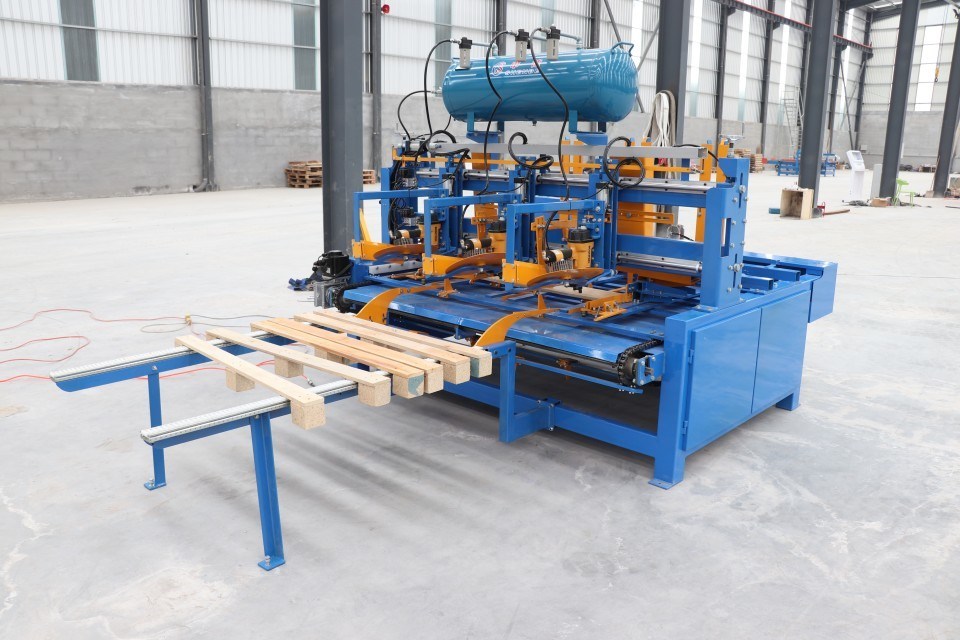

1. Euro Wood Pallet Pier Automatic Connecting Nailing Machine
| Model | SLDJ-1300-3 |
| Block width | 60-150mm |
| Board Length | 600-1300mm |
| Nail gun | CN70*3Stanley BOSTITCH Stitch CN70*3 |
| Nailing method | 1 nail, 2 nails, 3 nails, 4 nails, 5 nails |
| Air pressure | 0.8MPA |
| Nail gun speed | 4-8 s/time |
| Motor power | 1.5KW Servomotor |
| Voltage | 220V(Customized) |
| Operating mode | Touch screen |
| Production mode | Manual discharge/automatic pin pier |
2,Automatic European pallet nailing machine
| Model | AEPN-1300 |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 2kw Servo motor |
| Air pressure | 0.8MPA |
| Nail gun speed | 7 times /second. |
| Production effciency | 1-2pcs /min |
| Number of nail guns | 6P CN70,CN58 |
| Weight | 2000kg |
3.Wood pallet branding machine
| Model | LY-4 |
| Processing Size | 800-1300mm |
| Branding material | Copper/die steel |
| Air pressure | 0.8MPA |
| Branding speed | 4-8 s/time with pallet machine speed |
| Motor power | 0.75KW*2 |
| Number of branding | 1-6 pcs |
| Control mod | Pallet machine production line integrated supporting |
4. Pallet angle cutting machine
| Model | PQ1300-4 |
| Processing size | 800-1300mm |
| Circular saw blade diameter | 300mm |
| Motor power | 2.2KW*4 |
| Working mode | Automatic feed,Automatic Angle cutting |
| Weight | 350kg |
5. Wooden pallet palletizer
| Model | MD-1300Z |
| Processing size | 800-1300mm |
| Lift control | Hydraulic |
| Palletizing speed | 4-8 s/time |
| Model power | 5.2KW |
Labor Reduction: Fully automated cycle from raw wood to stacked pallets requires minimal operators.
Versatility: Adjustable settings to switch between different pallet sizes (700-1300mm).
Consistent Quality: Machine-driven nailing and branding ensure every pallet meets export regulations.
Durable Engineering: Heavy-duty components designed for 24/7 industrial operation.
